F1 Series Full-Automatic Advertisement Shaped Cutting Machine

F1 Series Full-Automatic Advertisement Shaped Cutting Machine

● Newly upgraded ultra-high speed, up to 3000mm per second.
● Adopt imported silent guide rail, no noise in high-speed operation.
● Non-sensing high-precision positioning technology, more accurate positioning.
● The weight of the machine body is twice that of the traditional machine body, high-speed operation is super stable
GET IN TOUCH

Adaptation Tools:

  • High-Speed Oscillating Tool
    KNOW MORE
  • Universal Cutting Tool
    KNOW MORE
  • Kiss cut Tool
    KNOW MORE
  • Foam Cut Tool
    KNOW MORE
  • Creasing Wheel Tool
    KNOW MORE
  • Water-Cooled Milling Tool
    KNOW MORE

Product Application

Suitable for all kinds of PP Paper/photos, KT board, Chevron/PVC board, corrugated board, reflective film, self-adhesive, acrylic, foam board, paper card, EVA, ABS board and other materials.

Product Parameters

Machine Model

 F1-2513

 F1-2516
F1-2513S
F1-2516S
Air Pump Power
7.5KW
 7.5KW 7.5KW 7.5KW
Total power
 11KW 11KW 11KW 11KW
Effective cutting size
2500*1300mm
2500*1600mm
2500*1300mm
2500*1600mm
Overal size of machine
4100*2300*1350mm
4100*2600*1350mm
6500*2300*1350mm
6500*2600*1350mm
Cutting speed 300-3000mm/s (Depending on the material)
Cutting thickness ≤50mm (Depending on the material)
Work Environment Temperature: 0°-35° Humidity: 35%-80%
Transmission system High-end servo motor drive, imported linear guides, bearings
Working Voltage/Power AC 380V/220V±10%50HZ
FileSystem Compatible with HPGL/PLT/DXF etc. Repeat accuracy ≤ 0.01mm Software resolution 0.025
Working Characteristics Can be connected to any CAD software, computer-aided design, and cutting can be carried out at the same time
Buffer Capacity Disposable rapid transmission with page change cutting
Transfer port Standard network port
Fixed mode Vacuum adsorption
Operator Interface Touch Screen
Feeding method Imported crawler automatic feeding method (can be cut in unlimited length)
Standard Tools High-speed oscillating tool, Universal cutting tool, Kiss cut tool, CCD automatic positioning
Optional tools 60000r/min  water-cooled milling tool, V-Cut tool, Foam Cut Tool, Creasing wheel tool, Pen
Cutting material
 All kinds of corrugated cardboard, Yellow cardboard, Red cardboard, PVC board, Honeycomb board, PVC foam
board, Acrylic, KT board, Aluminum-plastic board, Fiber midsole and rubber board, Thick foam, Car sticker,
adhesive, Reflective film, Photo paper, Photo PVC, etc.

*We reserve the right of final interpretation of the above parameters, subject to change without prior notice.

Product Description

RUK F1 series intelligent advertising cutting machine specializes in cutting PP Paper, KT boards, Chevron boards and other advertising materials.The product breaks through technical barriers and the cutting speed can reach up to 3000mm/s.

Original sensorless high-precision positioning technology

More accurate positioning, effectively reducing failure rate.

One-piece frame

The equipment is integrally welded with high-strength steel, accurately processed by a large gantry milling machine, and undergoes strict anti-aging treatment to ensure that the equipment maintains excellent accuracy and stability during long-term high-speed operation.

Platform self-monitoring system

Intelligent monitoring of platform flatness, automatic adjustment of knife depth, extending felt service life.

Intelligent maintenance system

It can reduce the wear of guide rails and sliders, continuously lubricate them, and improve the overall service life of the machine.

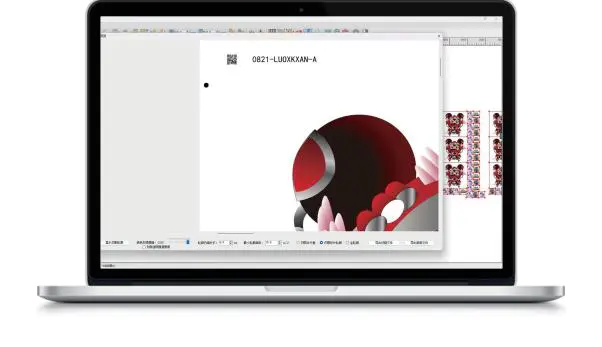

Product Software

Intelligent typesetting of patterns

One-click typesetting of incoming pictures, and layout of multiple pictures, saving time and materials.

Intelligent generation of cutting paths

Extract special-shaped contours with one click without unnecessary operations.

Intelligent generation of cutting marks

Compatible recognition of multiple MARK points, intelligent generation of MARK and QR codes.

Product Toolsintroduction

HIGH-SPEED OSCILLATING TOOL

Cut through materials through the principle of high-frequency vibration.

Cutting materials: PVC board/ KTboard/medium and low-density materials.

UNIVERSAL CUTTING TOOL

Suitable for cutting thin PVC below 5mm, all kinds of paper cards, light box cloth and other flexible roll materials with full transparency.

Cutting materials: light box cloth/PP paper/photo/cardboard.

 KISS-CUT TOOL
By adjusting the depth of the blade tip, only the upper half of the material can be cut through.
Cutting materials: stickers/ car stickers/reflective materials		 CREASING TOOL
Crease processing of cardboard, PET board, corrugated board, and honeycomb board with creasing wheel.
Cutting materials: Cardboard/ PET board/Corrugated board/ Honeycomb board.		 GRAY CARD GROOVING TOOL
It is mainly ideal for greyboard slotting, and can be flexibly slotted in multiple angles according to different needs.
Cutting materials: KT board/ Honeycomb board/ Corrugated board

POWERFUL DRIVING ROTARY TOOL

Imported motor, can be used for high-speed processing of various flexible materials such as banner cloth, clothing textile fabrics, etc.

Cutting materials: Soft film/ Flag cloth/Light box cloth

 DOTTED LINE WHEEL TOOL
Cut in any direction by a point-breaking knife to form an easy-to-tear line.
Cutting materials: Box/Paper		 GRAY BOARD V-CUT
Prefer for grooving of medium hardness PVC board, corrugated board, honeycomb board, and other materials.
Cutting materials: PVC board/ Corrugated board/ honeycomb board/other materials.		 FOAM CUT TOOL
Uses the high-frequency vibration of the motor to drive the blade to cut the material completely. Mainly used in the production of foam materials for internal partitions of cartons and the production of foam characters in the advertising industry.
Cutting materials: EVA/Foam/ EPE/cardboard		 PNEUMATIC OSCILLATING TOOL
Powered by compressed air to cut foam, suitable for cutting foam, sponge, and other materials of 5cm and below
Cutting materials: Sponge/ Corruagted board/Rubber
