MTC06-D-3232GR Double Beam Automatic Digital Plotter Flatbed Cutting Machine

Crawler flatbed pattern cutting table with unlimited length cutting and automatic large format digital cutting for all kinds of plastic sheet, foam, leather and reflective materials.

GET IN TOUCH

Product Application


Leather	Corrugated board	Gift box	Mobile phone films

Reflective materials	Bubble word	Photo printing	Flag material

Product Advantages

●Improve the cutting efficiency of the equipment. For cutting special-shaped pictures, it is twice as efficient as ordinary cutting equipment, with fast speed and less space occupied by the equipment (one machine is equivalent to two machines)
●It can realize the switching between single and double beams, which is more flexible
●The gear rack structure has better precision and more durable equipment
●The double-group machine head that can be replaced at will can be installed up to 8 groups at most. The machine heads with different functions can be easily replaced and added according to actual work needs
●It has functions such as milling, vibration full/half-cut cutting, drawing, etc. It can not only easily cope with various flexible materials, such as corrugated paper, honeycomb board, cardboard, foam, gray board, KT board, Chevron board, etc., but also can cut and mill hard plastics, acrylic, PVC and other advertising display industry materials. It is widely used in the cutting, proofing and small batch production of materials in packaging, printing, advertising, display and other industries
●The self-developed control system has faster and more stable operation speed. It meets user needs with excellent cutting speed and greatly reduces the failure rate and maintenance rate of products. It can adapt to uninterrupted work 24 hours a day, 7 days a week, and truly realize unattended operation
●The built-in cavity of the body accessories meets the overall planning of the equipment, which is neat and generous. It not only meets the 5s and 6s requirements of the factory, but also saves space and reduces noise
●Integrated partition suction, automatically turns on the suction function of the working area, disables the non-working area, and uses the least amount of electricity to achieve the maximum suction effect
●L-shaped double linear guide design, more stable transmission, higher cutting accuracy
●High-definition CCD positioning camera, automatic and accurate edge cutting for different materials. Solved the problems of manual cutting, printer printing deformation and poor cutting effect
●Intelligent layered adsorption makes paging simpler and achieves zero error in single paper feeding
●One-click recognition of QR code can realize mixed cutting of multiple papers
●Automatic knife setting function, realizes no manual intervention and accurately controls the depth of knife drop

Product Parameter

Machine Model	MTC06-D-3018GR	MTC06-D-3232GR	MTC06-D-5542GR	MTC06-D-6052GR
Air Pump Power	9KW	9KW	2*9KW	2*9KW
Fixed Power	14KW	14KW	23KW	23KW
Effective Cutting Area	3000*1800mm	3200*3200mm	5500*4200mm	6000*5200mm
Overall Size	660027001250mm	680041001250mm	910051001250mm	960061001250mm
Working Environment	Temperature: 0° -35° Humidity: 35%-80%
Fixed Method	Vacuum adsorption
Transmission Port	Standard network port
Transmission System	High-end servo motor drive, linear guide rail, rack and pinion helical gear
Operating Voltage/Power	AC 380V/220V±10%50HZ
File System	HPGL/PLT/DXF/AI/EPS/TIF/PDF/JPG/XML/CUT repeatability ≤ 0.01mm software resolution 0.025
Working Characteristics	Can be connected to any CAD software, computer-aided design and cutting are carried out at the same time
Buffer Capacity	One-time fast transmission, interchangeable pages
Cutting Speed	90m/min (cut according to diﬀerent materials)
Cutting Thickness	≤ 50MM(according to diﬀerent materials)
Operation Interface	Seven-inch color multi-language touch screen
Feeding Method	Imported crawler automatic feeding method (can be cut in unlimited length)
Standard Tools	High-speed oscillating tool, universal cutting tool, kiss-cut tool, CCD automatic positioning system, cursor
Optional Tools	Pen, V-CUT, Creasing wheel tool, Milling tool set, 50mm Foam cut tool
Cutting Material	PVC TPU PU leather, felt belt, imitation leather, coated cloth, mesh rubber, woven fabric, knitted fabric, PET, corrugated, honeycomb panel, cardboard, knife scraping cloth, photo, soft film

Product Description

RACK AND PINION STRUCTURE Rack and pinion structure: The rack and pinion structure with helical teeth has higher wear resistance to meet the customers' needs of higher precision and speed.

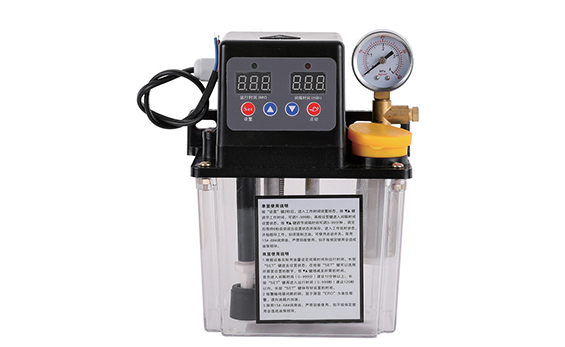

	AUTOMATIC LUBRICATION SYSTEM * It can reduce the wear of guide rails and sliders, continuously inject oil and lubricate them, protect the original physical accuracy, thus ensuring the machining accuracy and improve the overall service life of the machine. *: indicates that the configuration part can be added optionally

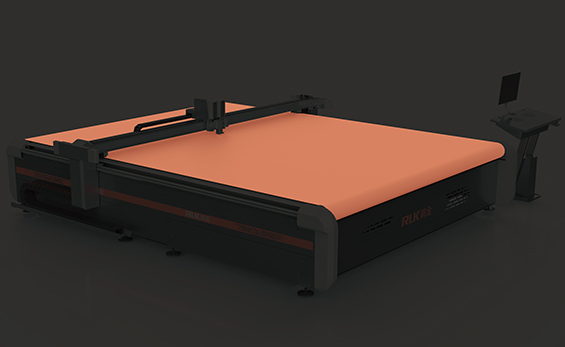

LARGE CUTTING FORMAT Super large-format spray cloth, photo, oil canvas and other cutting, the material is not pulled, and the cutting is not deformed.

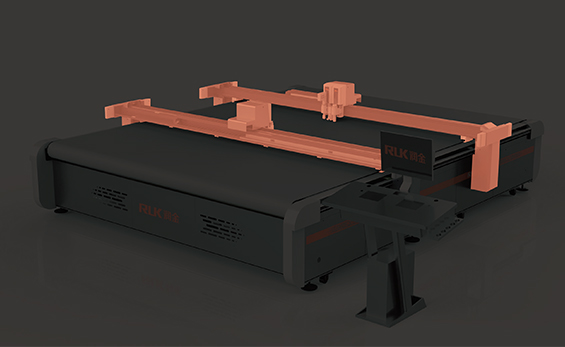

	DOUBLE BEAM STRUCTURE * Double beam structure, double work efficiency, at the same time can flexibly realize the use of single and double beam switching, to meet the same surface different cutting (asynchronous cutting). *: indicates that the configuration part can be added optionally
