MCC02 Customized Cutting Table Length High-End Garment Fabric Intelligent Cutting Machine
  • MCC02 Customized Cutting Table Length High-End Garment Fabric Intelligent Cutting Machine

MCC02 Customized Cutting Table Length High-End Garment Fabric Intelligent Cutting Machine

Double Efficiency cutting machine, Customizable extra-long cutting table tops for individual needs，Customized suits and shirts with full set of samples cut at once.
GET IN TOUCH

Adaptation Tools:

  • V-cut
     KNOW MORE
  • High speed oscillating tool
     KNOW MORE
  • Kiss-cut tool
     KNOW MORE
  • Foam cutting tool
     KNOW MORE
  • Universal cutting tool
     KNOW MORE
  • Gray card slotting tool
     KNOW MORE
  • Pneumatic oscillating tool
     KNOW MORE
  • Creasing wheel
     KNOW MORE
  • Driving rotary tool
     KNOW MORE
  • Dotted creasing wheel
     KNOW MORE
  • Milling tool
     KNOW MORE
  • Gear rotary tool
     KNOW MORE

Product Parameter

Model
MCC02-7009
MCC02-9009
MCC02-12009
MCC03-2516S
MCC03-3016S
Pick-up Area
 / / / 1.25m/2.5m 1.25m/2.5m
Effective Working Area
7000x900mm
9000x900mm
12000x900mm
2500x1600mm
3000x1600mm
Overall Size
7685x1828x1350mm
9685x1828x1350mm
9985x1828x1350mm
5030x2585x1350/6280x2585x1350
5530x2585x1350/6780x2585x1350
Pump Power
9kw
9kw
9kw
9kw
9kw
Standard Tools
Driving Rotary Tool, Cursor, Cylinder Pen Holder, Projection System
Cylinder Pen Holder, Driving Rotary Tool, Cursor
Transmission System
High-end servo motor drive, Linear guide, high precision rack and pinion
High-end servo motor drive, Linear guide
Cutting Materials
PVC, TPU, PU, Fiber glass tape, woven fabric, knitted fabric, etc.
Optional Tools
High-speed oscillating tool, I-notch tool, V-notch tool, Punching tool
Repeat Precision
≤ 0.1mm
Cutting Thickness
≤ 10mm
Max. Cutting Speed
1800mm/s
Fixing Method
Vacuum System
System
HP-GL/PLT/DXF Format Compatible
Interface
Ethernet Port
Voltage
220V/380V/50-60HZ
Power
AC 380V±38V
Working Environment
-10℃ ~45℃

Product Quality

High-Performance IC Controller
Independent design, mastering core technology

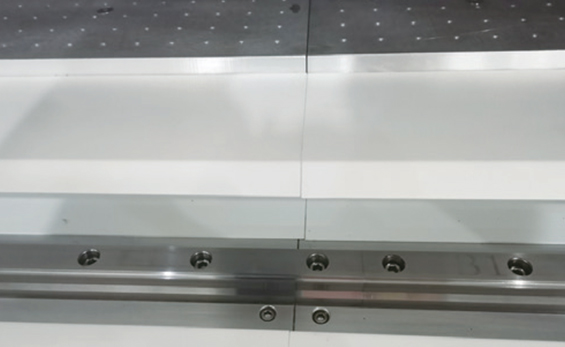

Modular table structure design
Easy to transport, handle and installation; high
strength gantry milling one-piece frame structure,
with high strength weather resistance, durable

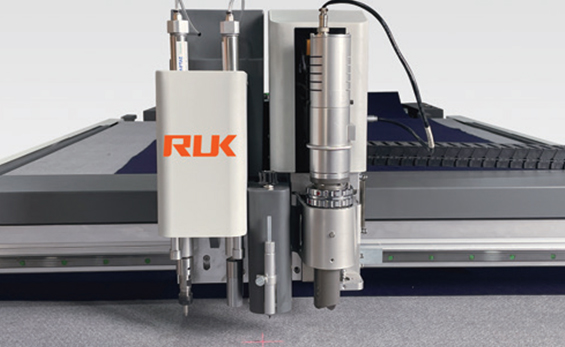

High-precision multi-tool head
Including v-notch tool, I-notch tool and punching tool,
etc. to meet the different needs of customers in the
cutting process

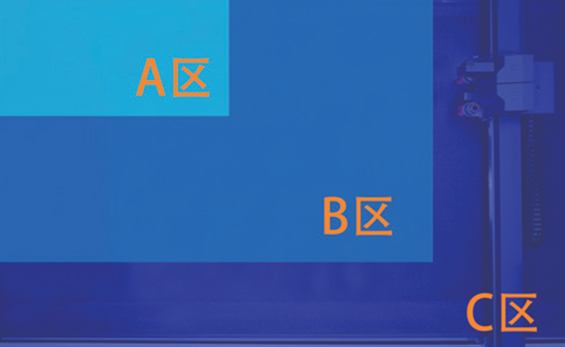

Partitioned air suction
Adopt partitioned air suction and tracking air suction
to achieve multi-layer cutting Multi-point adjustable
platform, durable and non-deforming

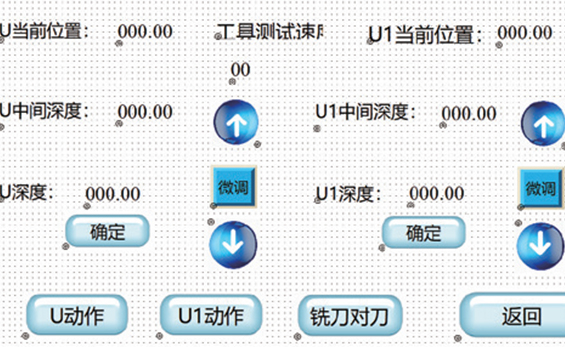

Visual digital fine-tuning and preset storage
Designed for cutting various fabrics with high speed
and smooth and neat cutting edge. Visual digital fine
tuning and preset storage of knife depth and knife
pressure, no need to adjust manually by experience

Product Introduction

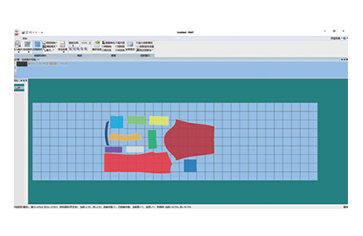

Automatic Matching Stripe Matching Plaid Typesetting Software
Save 100%-120% of the typesetting time over manual
Save 3%-5% on some fabrics

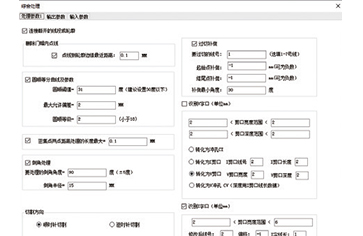

One-click code change
Personalized and customized software to meet special production needs, easy to operate and increase production efficiency

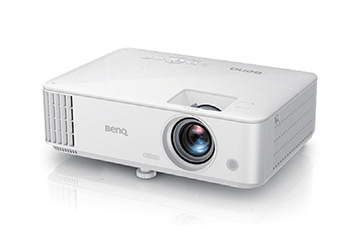

International Brand Projector
Select international brand projectors to ensure higher accuracy and stability of contour recognition
