MCC03-2516 Professional Flexible Material Cutting Automatic Feeding Identification Cutting Machine

Focus on digital printing industry, to achieve intelligent cutting and batch customization. Save time, save material, save labor. No human intervention, real artificial intelligence cutting machine.

GET IN TOUCH

Product Application

Car mat, pillow, mat, clothing, bags, decorative paintings, soft glass (tea table mat ), magnetic paste, etc.

Product Advantage

●One-click contour extraction, no need for PS, to achieve precise cutting of edge contours, with an accuracy of up to 0.25mm while ensuring more than 10 times faster efficiency than manual labor
●Continuous seamless cutting, zero spacing in the cutting process, saving time and materials, and realizing mass production
●42MM thick keel honeycomb aluminum plate, integral suction (optional partition suction) with stronger adsorption force, adjustable structure platform, long-term use without deformation
●Switch between different cuts at will, realize arbitrary switching of (V/I) cuts, and meet various customer needs
●Automatic partition cutting function (realize small and multi-layer cutting without laminating cutting)
●Automatic laminating device, wider range of use of punching and machines, flexible and multi-selection
●Equipped with imported cameras, high-resolution capture, faster response speed, and higher capture accuracy
●Equipped with high-performance fill light board, not affected by the external environment, more stable system

Product Parameter

Model	MCC03-2516	MCC03-2518	MCC03-2520	MCC03-3020
Cutting Area(MM)	2500*1600	2500*1800	2500*2000	3000*2000
Measurement mm	390025851350	390027851350	390029851350	440029851350
Pump Power	9KW	9KW	9KW	9KW
Rated Power	11KW	11KW	11KW	11KW
Operation Model	Work with any CAD software, computer synchronously for quick data transmission
Cutting Materials	PVC TPU PU Leather, Faux Leather, Coated Fabric, Woven Fabric, Knitted Fabric
Standard Tools	Pen, Cursor, Driving rotary tool, Camera system
Optional Tools	High-speed oscillating tool, punching tool, I notch tool, v notch tool, projection system
Cutting Thickness	≤10mm(According to different cutting materials)
Cutting Speed	100m/min(According to different cutting materials
Suction Method	Vacuum System
Repeat Cutting Precision	≤0.01mm
Software Resolution	0.025
Interface	Ethernet Port
Buffer Memory	2G, fast transmission for multi-page large file
System	HPGL Format Compatible
Control Panel	7 Inch Color Touch screen
Driving System	Import Servo Motor、Straight rail
Voltage/power	AC380V±10%,50HZ
Fuse	6A/30A
Working Environment	-10℃~45℃

Product Description

Automatic roll cutting for printing cloth and digital printing rolling fabric contour visual recognition → finish cutting → auto feeding → repeat contour visual recognition → finish whole set of fabric cutting The whole process without human intervention, real artificial intelligence cutting machine

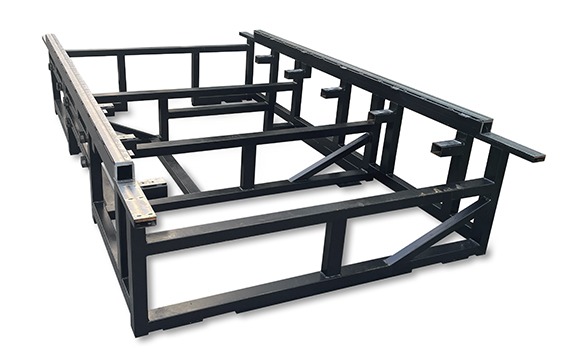

	Gantry milling integrated base, the whole body without screws, durable, no deformation

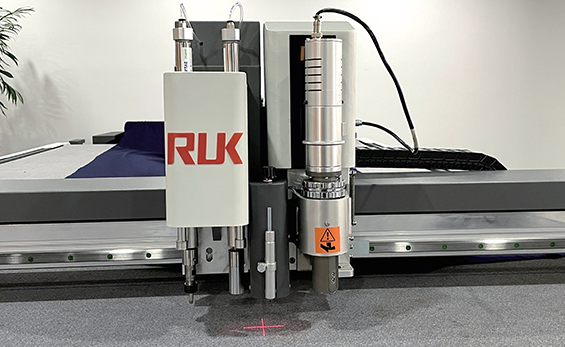

Multi-function high precision machine head, different tool heads can be selected according to
	Unique keel platform suction structure, multi-point adjustable, higher flatness

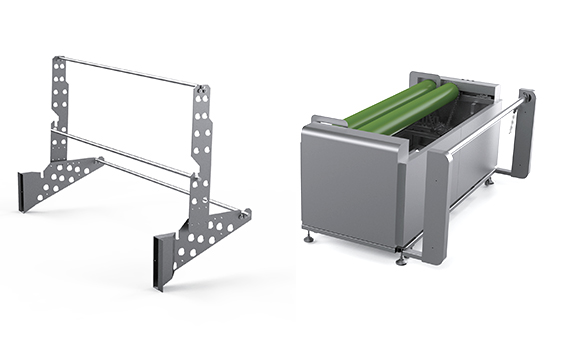

Various feeding methods can be selected to meet the needs of different industries.
